Vacuum Ejectors  - Vacuum Generators

 Vacuum Pump Systems

TeknoConvey pneumatic ejector vacuum pumps, reduced energy consumption and downtime in tooling and transferring process. Teknoconvey is among the top 5 vacuum pump manufacturers in the world.

Machine manufacturers uses vacuum to hold plastic, wood and aluminium plates during tooling and transferring processes. The currently used electric vacuum pumps sometimes contaminated the industrial water circuit with leaking cooling liquid, causing a lot of downtime issues for the company.

TeknoConvey  vacuum pumps were installed and the risk of water contamination was reduced to zero since these pumps do not use water. The pneumatic vacuum ejector pumps were chosen due to the need for fast evacuation, as a large vacuum reservoir must be kept for security reasons.

Since the installation of our pneumatic vacuum generetors, the customer has recognized a reduction in energy consumption, maintenance costs and noise level.

TeknoConvey vacuum pumps or vacuum generators are predominately based on the high engineering  technologies. TeknoConvey vacuum pumps is an advanced solution for creating vacuum with compressed air. Based on TeknoConvey multistage technology,  our  cartridges are more efficient and more reliable than conventional vacuum ejectors which one step, which allow for the design of a flexible, modular and efficient vacuum system. A vacuum system based on our  technology can provide you with more and more vacuum flow than conventional systems, allowing you to increase speed with high reliability at the some time reducing energy consumption.

TeknoConvey Vacuum Pump Technology

TeknoConvey vacuum pumps generators are predominately based on the high afficient technologies.

Best  advanced solution for creating vacuum with compressed air. Based on TeknoConvey multistage technology, our cartridges are more efficient and more reliable than conventional ejectors, which allow for the design of a flexible, modular and efficient vacuum system. The technology ensures excellent performance at both low and high feed pressures. Pumps based on our vacuum  technology can operate within the feed pressure range of 0.15 to 0.70 MPa.

Our vacuum pump design and covers from very small chip pumps to big capacty pumps. All of the pumps would have the multi stage cartridges, A vacuum system based on our vacuum technology can provide you with more and more vacuum flow than conventional systems, allowing you to increase speed with high reliability, while reducing energy consumption.

Vacuum Generators

Vacuum generators provide the required vacuum. The vacuum is generated either pneumatically (ejectors) or electrically (pumps, blowers). Pneumatic vacuum generators implement short cycle times and can be integrated directly into the system due to their compact and lightweight design. Ejectors offer intelligent functions for energy and process control. Electrical vacuum generators are used in applications when compressed air is not available . An ejector module with efficient eco-nozzle technology for direct integration in existing machine designs. The ejector module can be installed directly on the suction cup due to the minimal space required and low weight. The resistance to dirt and the one-piece nozzle fitting allow for long service intervals as well as simple, quick and tool-free cleaning.

TeknoConvey has big experience in various applications and industries, from pick and placing small candies to large heavy boxes. We strive to increase productivity, thus reinforcing your edge in the market. We also aim to reduce your energy consumption and improve your working environment.

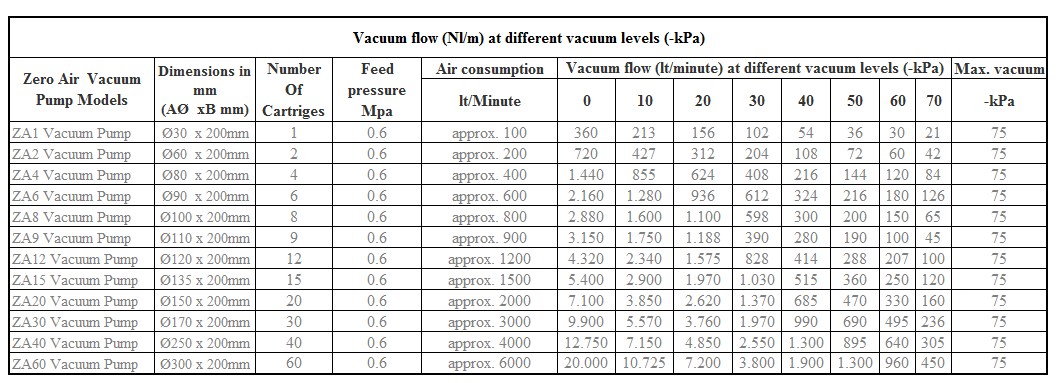

General Information

• Sound Level: 66 - 77 dBA
• Temperature: -10 to 80 ° C
• Maximum Supply Pressure: 0.7 MPa
• Optimum Supply Pressure: 0.6 MPa
• Max. Vacuum: 75 –kPa (22.1 –inHg)
