PNEUMATIC CONVEYING FOOD SECTOR

To describe dense phase pneumatic transport in a few words: pneumatic transport is the simplest way to transport dry bulk materials by using a low cost efficient equipment. The system of a pneumatic transport system is simple consists of a pressure vessel that pumps the materials (powders, granules or other dry bulk materials) via closed horizontal or vertical pipelines by using compressed air to use low velocity, meaning a less wear of the pipelines and your pruducts.

All industry application, TeknoConvey will be best conveying partner with you for every step of your project. From engineering to installation for a complete solution for pneumatic danse phase transportations. Providing best engineered and after sells support services for your factory’s for your specific pneumatic bulk material handling.

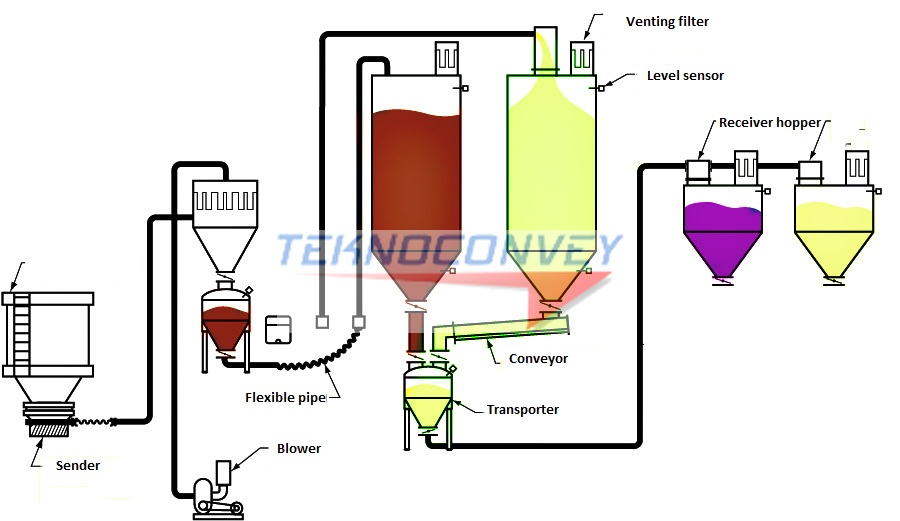

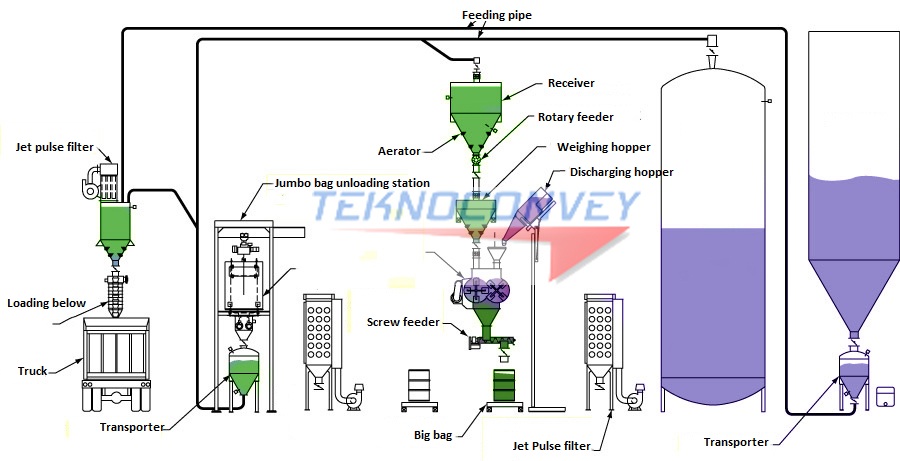

TecnoConvey pneumatic transport systems for the food industry are designed to meet stringent hygiene requirements. The TeknoConvey standard includes materials of construction, welding procedures, surface finish, seal materials and cleaning access.In many applications the filtration,drying and cooling of the conveying air must also comply with recognised standards.Typical applications in the food industry include road tanker offloading, gentle transport of fragile products to storage vessels, process operations and packing.

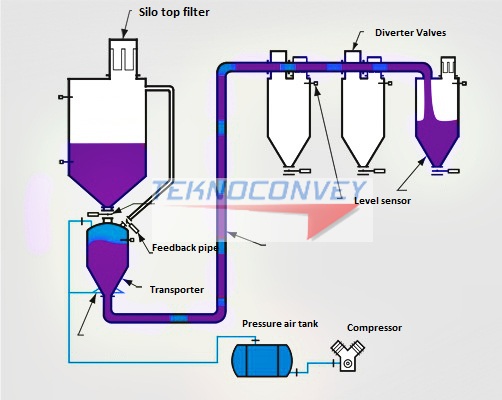

Dense phase pneumatic transport systems use compressed air at above 1 Barg (0.5 - 0.8 possible dependent on powder and convey line) to push materials from a pressure vessel, transfer unit or pressure pot or vessel through a pipeline to a destination where the air and product are separated by simple small fitler not as lean phase pneumatic conveying system need’s.

We has big experience in pneumatic transport system just about every product, all our customer can rest assured that their bulk material conveying system will provide ideal performance in their request.

Some materials that are not suitable for pneumatic conveying with large particle size, with high bulk density, and the extremely sticky materials, since they tend to build a coating on material contact surfaces and can eventually block the conveying line. It is very important that particles are fine enough and without big lumps the materials must be 90% smaller than 1mm for effective pneumatic conveying , and theconveying materials moisture must be lower than 5-4%.
